Predefined Widgets

The org.apache.juneau.rest.server.widget package contains predefined reusable widgets.

Not the declarative widget beans

These are $W{...} HTML widgets. For the typed ModalDef, FormDef, CalendarDef and stats beans in juneau-console-widgets, see Declarative Widgets.

org.apache.juneau.rest.server.widgetWidget MenuItemWidget ContentTypeMenuItem QueryMenuItem PoweredByJuneau PoweredByApache Tooltip

MenuItemWidget

MenuItemWidget is an abstract class for rendering menu items with drop-downs. It defines some simple CSS and Javascript for enabling drop-down menus in the nav section of the page (although nothing keeps you from using it in an arbitrary location in the page). The script specifies a menuClick(element) function that toggles the visibility of the next sibling of the element.

Subclasses implement the following methods:

MenuItemWidgetgetLabel(RestRequest,RestResponse) getContent(RestRequest,RestResponse) getHtml(RestRequest,RestResponse)

For example, to render a link that brings up a simple dialog in a div tag:

@Override
public String getLabel(RestRequest req, RestResponse res) {
    return "my-menu-item";
}

@Override
public Object getContent(RestRequest req, RestResponse res) {
    return HtmlBuilder.div("Surprise!").style("color:red");
}

The HTML content returned by the getHtml(RestRequest,RestResponse) method is added where the $W{...} is referenced in the page.

ContentTypeMenuItem

ContentTypeMenuItem is a predefined Widget that returns back a list of hyperlinks for rendering the contents of a page in a variety of content types. The variable it resolves is $W{ContentTypeMenuItem}.

An example of this widget can be found in RootResources (juneau-petstore-jetty), which provides a drop-down menu item for rendering the current page's contents in a variety of content types:

@Rest(
    title="Juneau Petstore (Jetty)",
    description="Apache Juneau petstore sample application running under Jetty/Microservice.",
    children={...}
)
@HtmlDocConfig(
    widgets={
        ContentTypeMenuItem.class
    },
    navlinks={
        "api: servlet:/api",
        "stats: servlet:/stats",
        "$W{ContentTypeMenuItem}",
        "source: $C{Source/gitHub}/org/apache/juneau/petstore/jetty/RootResources.java"
    }
)
public class RootResources extends BasicRestServletGroup {...}

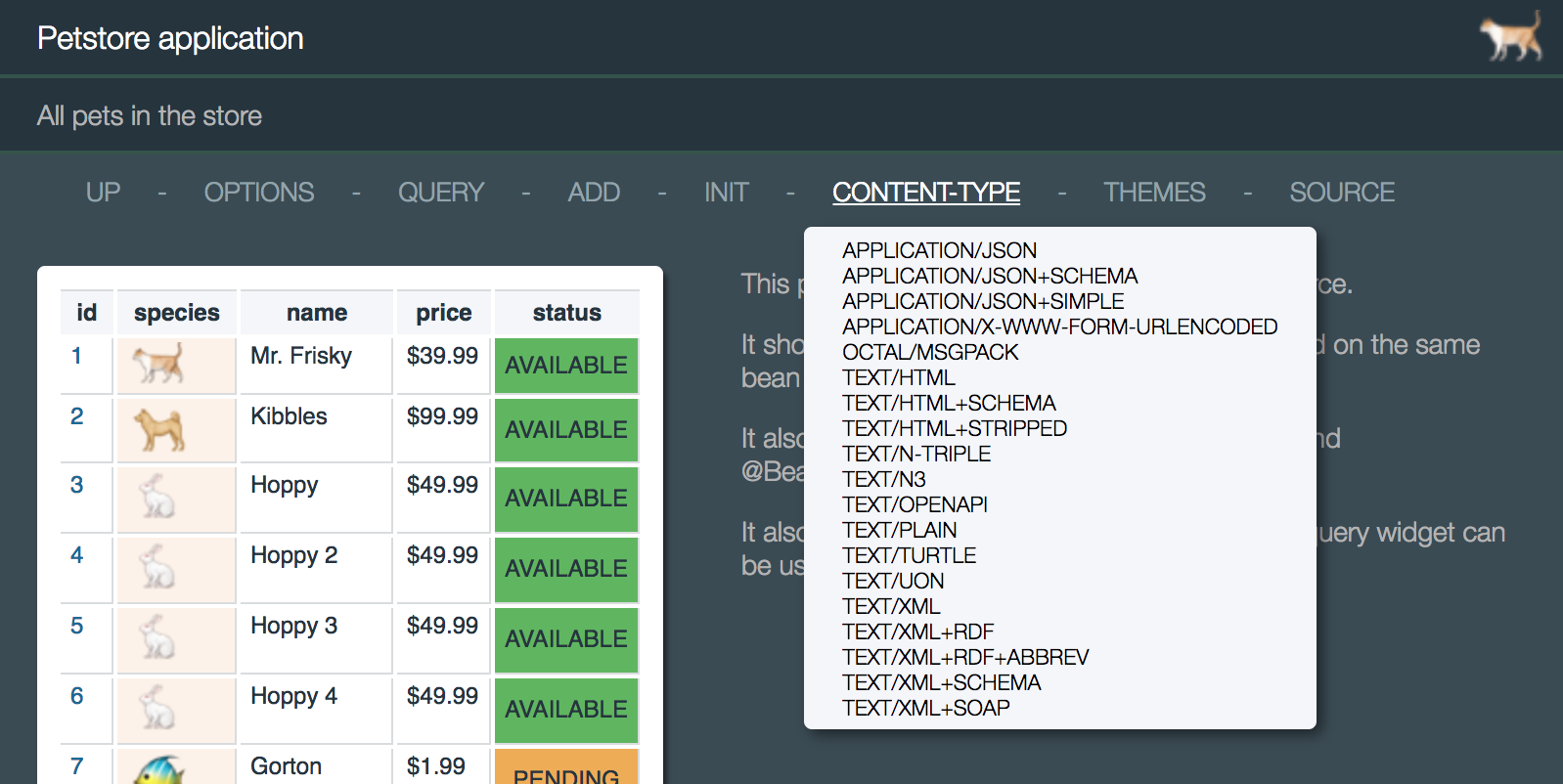

It renders the following popup-box:

QueryMenuItem

QueryMenuItem is a predefined Widget that returns a menu-item drop-down form for entering search/view/sort arguments. The variable it resolves is $W{QueryMenuItem}.

This widget is designed to be used in conjunction with the Queryable converter, although implementations can process the query parameters themselves by taking a BeanQueryRequest method argument (bound from the search, view, sort, position and limit request parameters) and running a BeanQuery session over their data.

Neither of the currently-shipping petstore resources pairs this widget with the Queryable converter, so the following is a self-contained, minimal illustrative example rather than a citation of an existing class:

@Rest
public class MyResource extends BasicRestServlet {

    @RestGet(
        path="/",
        converters=Queryable.class
    )
    @HtmlDocConfig(
        widgets={
            QueryMenuItem.class,
        },
        navlinks={
            "up: request:/..",
            "options: ?method=OPTIONS",
            "$W{QueryMenuItem}",
            "$W{ContentTypeMenuItem}"
        }
    )
    public Collection<MyBean> getBeans() {
        ...
    }
}

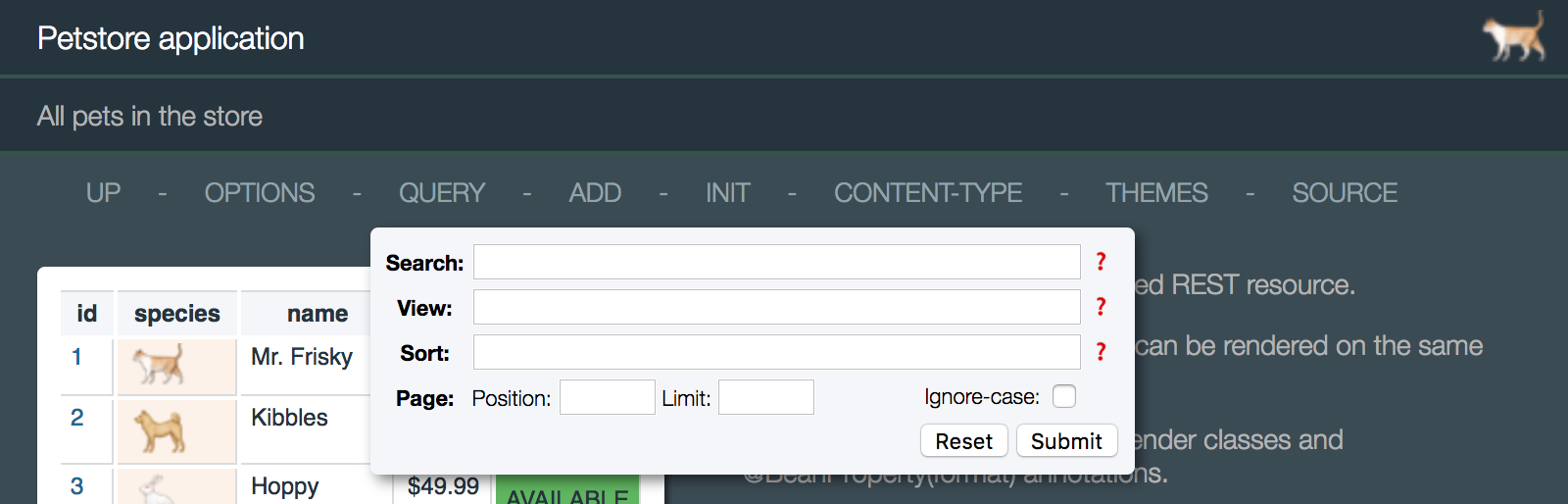

It renders the following popup-box:

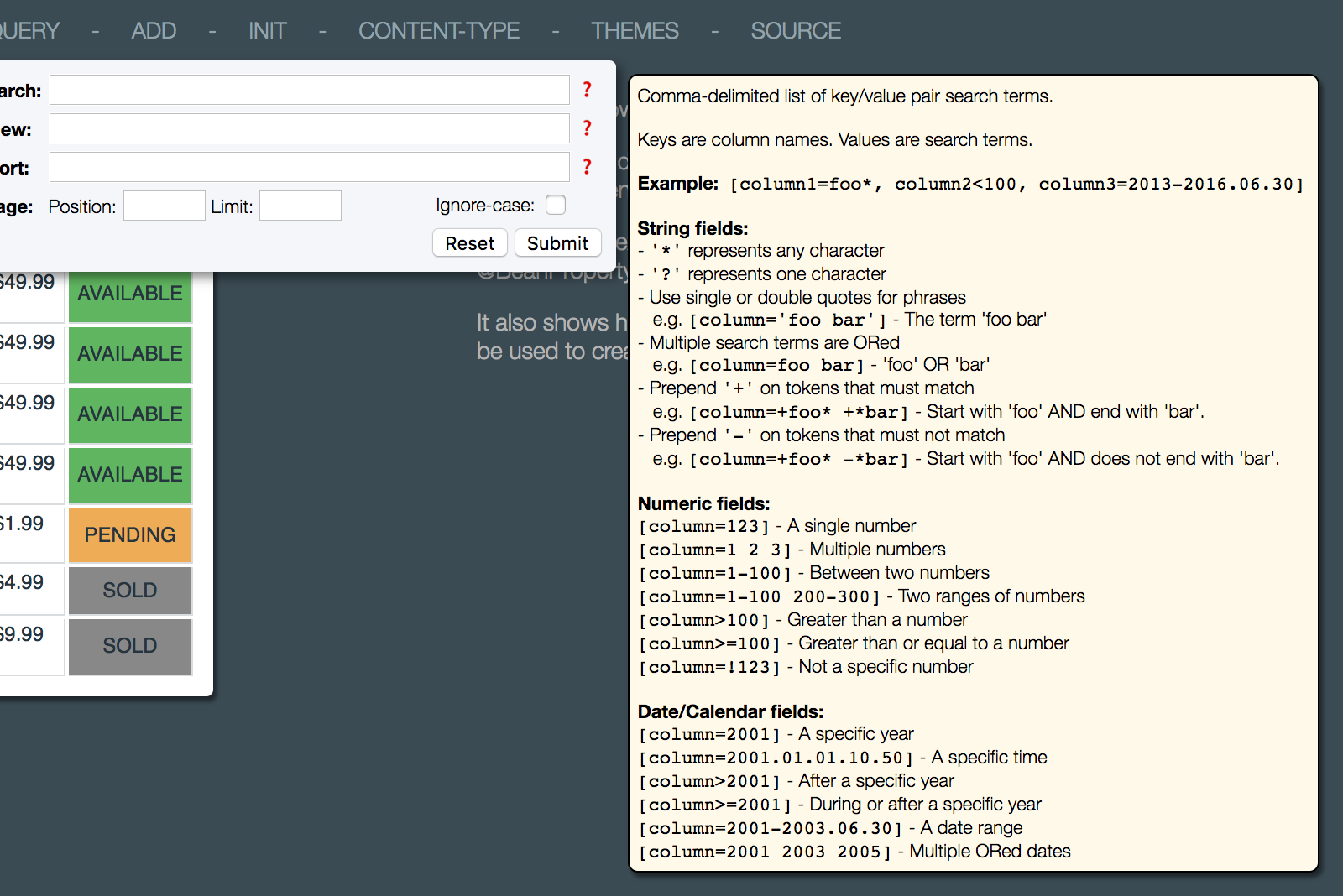

Tooltips are provided by hovering over the field names.

When submitted, the form submits a GET request against the current URI with the BeanQuery query parameters (e.g. ?search=column1=$prefix(Foo)&view=column1,column2&sort=column1,column2:desc&position=100&limit=100). The Queryable class knows how to perform these filters against collections of POJOs. The tooltips describe the BeanQuery operators ($eq, $contains, $gt, $between, $and/$or/$not, ...); see the BeanQuery page for the full grammar. The old "Ignore-case" checkbox is gone: case sensitivity is a property of each operator.

PoweredByJuneau

PoweredByJuneau is a predefined Widget that places a powered-by-Juneau message on a page. The variable it resolves is $W{PoweredByJuneau}. It produces a simple Apache Juneau icon floating on the right. Typically it's used in the footer of the page, as shown in this minimal example:

@Rest(path="/myResource")
@HtmlDocConfig(
    widgets={
        PoweredByJuneau.class
    },
    footer="$W{PoweredByJuneau}"
)
public class MyResource extends BasicRestServlet {...}

It renders the following image:

PoweredByApache

PoweredByApache is a predefined Widget that places a powered-by-Apache message on a page. The variable it resolves is $W{PoweredByApache}. It produces a simple Apache icon floating on the right, hyperlinked to http://apache.org. Typically it's used in the footer of the page, as shown in this minimal example:

@Rest(path="/myResource")
@HtmlDocConfig(
    widgets={
        PoweredByApache.class
    },
    footer="$W{PoweredByApache}"
)
public class MyResource extends BasicRestServlet {...}

Tooltip

Tooltip is a predefined template for adding tooltips to HTML5 bean constructs, typically in menu item widgets.

The following examples shows how tooltips can be added to a menu item widget.

public class MyFormMenuItem extends MenuItemWidget {

    @Override
    public String getLabel(RestRequest req, RestResponse res) {
        return "myform";
    }

    @Override
    public Object getContent(RestRequest req, RestResponse res) {
        return div(
            form().id("form").action("servlet:/form").method("post").children(
                table(
                    tr(
                        th("Field 1:"),
                        td(input().name("field1").type("text")),
                        td(new Tooltip("(?)", "This is field #1!", br(), "(e.g. '", code("Foo"), "')"))
                    ),
                    tr(
                        th("Field 2:"),
                        td(input().name("field2").type("text")),
                        td(new Tooltip("(?)", "This is field #2!", br(), "(e.g. '", code("Bar"), "')"))
                    )
                )
            )
        );
    }
}
